  Top » Catalog » Electric Motors » Align Motors » HBP80001

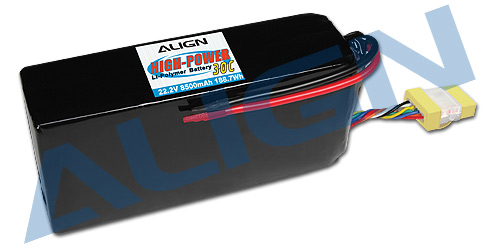

HBP80001 6S1P 22.2V 8500mAh/30C

 [HBP80001]
 $191.99  $115.19

Description

HBP80001 6S1P 22.2V 8500mAh/30C

Product:
Package:
Specification:

●These high discharge lithium polymer batteries are designed to maintain performance in series configuration, and can be charged individually through balancing plug. The extreme high capacity are catered specifically for applications requiring longest flight duration, suitable for T-Rex 800E and T-Rex 800E aerial photography ship use.
●Max Continuous Discharge: 30C(255A), Burst Discharge: 50C(425A). Normal operating temperature is approx. 40-65°C(within 80% of rated discharge). Max. temperature: 80°C.
●Recommend to discharge the battery within 80% of rated discharge, keep 95% capacity when over 100 cycles, keep 90% capacity when over 150 cycles.(The cycle life and efficiency will reduce due to high current, high temperature and over-discharge)

●Output:22.2V8500mAh 188.7Wh(6S1P)
●Dimension:175x85x45mm
●Weight:1280g

NOTE:
When using high energy Li-poly Battery, please do not over-discharge, over-charge batteries, or result over-high temperature. Discharging capacity can't exceed 80% of the max capacity after full charging to ensure a good cycle performance.Recommend to full charge a brand new battery before using and only discharge the battery 50% for first 5 times to make a good efficiency of the battery. Please make it a habit to always count time for flight, or please set a low voltage protection on ESC (Cell voltage after stopping using can not lower than 3.4V). Do not use the battery at insufficient of voltage.

Do not expose batteries to sunshine or store/ charge batteries at the temperature up to 35℃ in a airtight car. The environment high temperature could cause the damage or the danger of burst. If the battery becomes hot while high current discharging or flying, please do not charge the battery immediately. Wait to cool down(about 20 mins), then inspect to recharge. If against follow the original factory using rules, possibly cause the battery to inflate or any dangerous accident happens.

Do not leave the charger is operating unattended as it may cause a fire.



Mfg Info

ALIGN

Manufacturer Info
ALIGN Homepage
Other products

Extra Info

Comments
There are currently no product reviews
Write a review on this product!


Extra Info
This product was added to our catalog on Monday 03 June, 2013.
Notify me of updates to HBP80001 6S1P 22.2V 8500mAh/30C
Tell someone you know about this product.


 Add to Wish List
 $191.99  $115.19  Quantity:
