Product:
SERVO ONLY: No Horns, NO grumets, etc
|
|
|

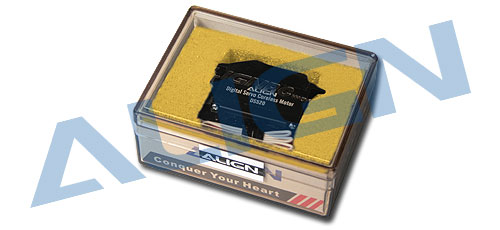

| Package: |
 |
| Instruction: |
Specification: |
●Coreless Motor Design for fast speed, high efficiency, and low power consumption.
●10 Bits signal resolution for smooth movements.
●Response time of 0.07s/60°. High strength composite alloy gears with high precision and durable structure characteristics.
●Aluminum alloy mid case construction for instantaneous heat dissipation, maintaining servo’s high efficiency.
●Supports digital & analog control signal.
●Powerful and precise servo suitable for T-Rex 500 CCPM cyclic and rudder servo use.
|
●Stall torque:1.9kg.cm(4.8V)
2.5kg.cm(6.0V)
●Motion speed:0.09sec/60°(4.8V)
0.07sec/60°(6.0V)
●Rating voltage:DC 4.8-6V
●Temperature range:-20°C~+60°C
●Dimension:35 x 15 x 29.2mm
●Weight:25.9g
●1520μs standard band
|

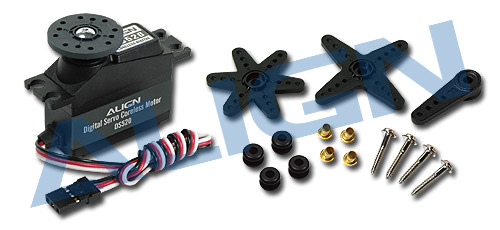

| Accessories: |
●Servo rudder piece x 3
●Set screw x 1
●Rubber damper x 4
●Brass grommet x 4
●Tapping screw for servo x 4
●DS5 Servo horn x 1 |
|
