RH80E06XW T-REX 800E PRO DFC Super Combo

 [RH80E06XW]
 $2,289.99  $1,602.99

Description

RH80E06XW  T-REX 800E PRO DFC Super Combo

The T-REX 800E PRO DFC is an 800 class flagship designed specifically for 3D flights. The CCPM direct connect servo design, coupled with DFC rotor head assembly, results in fast, precise, and more direct control reaction. The frame material integration technology is utilized on the landing gears and vertical tail fin, creating a unique look not only making the T-REX 800E PRO DFC stand out, but also resulting in an innovative design that encompasses structure rigidity along with beautiful aesthetics.

Nothing was spared in the electronics components of the kit: The mighty power of the 850MX(490KV) motor paired with Castle Edge HV 160 speed controller for unparalleled power output; The new CNC machined aluminum cased BL815H brushless high voltage cyclic servos paired with BL855H rudder servo not only exhibited top of the line servo aesthetics, but also combine heat sink function and best performance in the market segment.

The T-REX 800E PRO DFC can be described as the current top of the line flagship representing Align’s superior product line. Based on the pedigree of pure 3D flight, the newest design concept with absolute top of the line equipment, along with superior aesthetics and attractive lines, the T-REX 800E PRO DFC will definitely elevate the adrenaline in your blood!

Focus Shots

Equipped with the low CG DFC rotor head, exhibits exhilarating 3D performance and unimaginable flight speed.

850MX inherit from the previous 800MXs feature, high efficiency, superior power, excellent torque, low current draw and low temperature. It’s capable of maintaining much more consistent torque and head speed through continuous 3D maneuvers, which is particularly special design for 3D flights.



Equipped with Align’s new generation GPro flybarless system, featuring CPU capable of 20 times faster processing power, along with brand new firmware, and performance improving compensation routines; Allowing Gpro to provide faster and more precise response, reaching the pinnacle of helicopter performance. GPro features ergonomically adjustability through PC, as well as iOS and Android smartphone apps.

New style swash anti-rotation guide with embedded anti-wear material, effectively minimize the wear between swashplate long ball and guide.



The shapely Reinforcement plate and brace are special design for T-REX 800E, effectively increase the torsional strength of main frame, under extreme 3D maneuver, you can strongly feel its solid reinforcement from its structure, thenew CNC machined aluminum electroplate red, is particular arranged in groups of 850MX motor, subtly bring the T-REX 800 stylish and metal beauty.

Equipped with new high strength cnc m1 helical main gear and tail drive bevel gear assembly, featuring reinforced overall gear structure and increased gear thickness, effectively improves gear's anti torsion ability to prevent gear from deforming under extreme power,reducing gear wear and power loss.



The latest BL815H and BL855H metallic brushless servos are standard equipment, featuring superior torque, speed with unparalleled efficiency and precision. These servos are highly appraised by team pilots for their low operation heat, contributing to dramatically increased longevity.

Innovative composite of fiber material for landing gear, unique stylish shape, functional intensity and visual beauty are both innovative design.



Using competitive material and special imbedded technology for vertical tail, enhanced its structural strength and boutique texture efficiently, vivacious color providing excellent visibility.

Using competitive material and special imbedded technology for vertical tail, enhanced its structural strength and boutique texture efficiently, vivacious color providing excellent visibility.



Utilizes newly developed, highest spec and superior anti-wear material to increase the overall strength and durability for torque tube drive gear. Effectively minimize gear striping and crash damage.

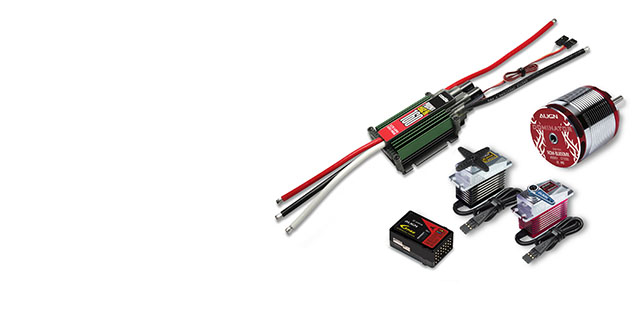

Standard equipment

●Castle EDGE HV 160 Brushless ESC
●850MX Brushless Motor(490KV)
●BL855H High Voltage Brushless Servo
●BL815H High Voltage Brushless Servo x 3
●Gpro Flybarless system

Specification

● Length: 1490mm
● Height: 402mm
● Width: 204mm
● Main Blade Length: 780mm
● Main Rotor Diameter: 1740mm
● Tail Rotor Diameter: 301mm
● Motor Drive Gear:12T
● Main Drive Gear:112T
● Autorotation Tail Drive Gear: 104T
● Tail Drive Gear: 22T
● Drive Gear Ratio: 1:9.33:4.37
● Weight(With Motor): 4100g

Accessories

●T-REX 800E PRO DFC Kits Set x 1
●Gpro Flybarless system x 1 set
●780 Carbon Fiber Blades x 1 set
●BL815H High Voltage Brushless Servo x 3
●BL855H High Voltage Brushless Servo x 1
●3K Carbon Fiber Tail Boom x 1
●850MX Brushless Motor(490KV) x 1
●Castle EDGE HV 160 Brushless ESC x 1
●115mm 3K Carbon Fiber Tail Blades x 1 set


Radio transmitter and electronic equipment required for assembly:
●Transmitter(7-channel or more, helicopter system)
●Receiver(7-channel or more)
●6S Li-Po 4500 ~ 5200mAh x 2
●2S Li-Po 1900 ~ 2300mAh x 1


Gpro Programmable Flybarless System

ALIGN new multifunctional Gpro flybarless system with active CPU, processing 20 times faster than previous generation. The freshly new software structure improves system compensation, bring GPro up with precise and agile response, and also keep up-to-date flying performance than ever.The most important is that utilizes with latest iOS and Android APP can be easily and directly adjusted through mobile phone while at the field. New human oriented interface allows convenient and rapid setup and installation.

●Brand new CPU, processing 20 times faster than previous generation, bring GPro up with precise and agile response.
●Freshly new software process structure improves system compensation and keep up-to-date flying performance.
●Utilizes with latest iOS and Android APP that GPro can be easily and directly adjusted through mobile phone while flying outdoors....[+] More

Gpro Programmable Flybarless System

●Operating voltage range:DC 3.5V~8.4V
●Operating current consumption:<100mA @4.8V
●X and Y axis Operating Angle Range:-300~+300 degree
●Z axis Operating Angle Range:-600~+600 degree
●Sensor resolution:12bit
●Supports 90/120/135/140 CCPM swashplates
●Spektrum and JR Satellite antennas support (Replaces original factory receiver)
●Futaba S.BUS/JR X.BUS system support
●Rudder support 760μ narrow band servos
●Supports multi-blade rotor heads



●Engine speed governor range:10500-21000 RPM
●Operating Temperature:-20~65 degree
●Operating Humidity:0%~95%
●Size:36.5x25.2x15.6 mm Size/11.5g
●RoHs cerification stamp


Gpro Program download
Manuals Download
Introduction Videos
Gpro


Introduction Videos
Introduction Videos
Introduction Videos

Introduction Videos
Introduction Videos
Introduction Videos



Mfg Info

ALIGN

Manufacturer Info
ALIGN Homepage
Other products

Extra Info

Comments
There are currently no product reviews
Write a review on this product!


Extra Info
This product was added to our catalog on Thursday 14 August, 2014.
